Interweaving Strokes

Overview

This is a quick tutorial on creating interweaving effect with paths generated by Vector Path and SpiroGraph plug-ins.

You’ll need a rotating brush to follow along, here is mine –  spirograph_brushes , or you can make your own, whatever…

Here is an example of the effect we’re after:

Interweaving Ornament

The below steps are there to just demonstrate an idea, you do not need to follow precisely.

Basic concept

Step 1

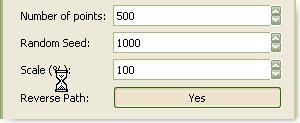

Create a new image, open Filters > Bytes-and-Pixels.com > Vector Path. Select “Reverse Path” option in the plug-in dialog.

interweave_tutorial_001

You will have generated two paths.

interweave_tutorial_002

Step 2

Stroke each path with an animated brush on a separate layer.  In Gimp 2.8 brush doesn’t follow path correctly by default ( stroke is skewed).

nterweave_tutorial_003

The workaround for this is to set brush dynamics to “Dynamics Off” and select the “Emulate Brush Dynamics” option in the “Stroke Path” dialog.

interweave_tutorial_004 interweave_tutorial_005

This should make the brush follow the path correctly.

Now, you would have 2 layers with the path stroked from the opposite ends.

Layer 1:

interweave_tutorial_006

Layer 2:

interweave_tutorial_007

Step 3

Duplicate layer 2 and hide the original (for backup, in case you make a mistake and want to go back).

interweave_tutorial_008

Now, delete parts of the superimposed layer to create interweaving effect.

interweave_tutorial_009

interweave_tutorial_010

interweave_tutorial_011

Extending the idea

Building on this concept, another example.
Here is a path that has a spiral-like (i.e. telephone wire) progression in one direction.
interweave_tutorial_012

To build more complex patterns, I like to make the base stroke more symmetrical. By following the steps outlined above,

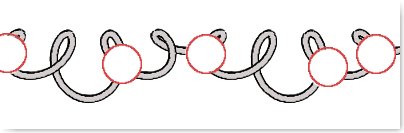

interweave_tutorial_013

my stroke now looks like this.

interweave_tutorial_014

Next, I will  merge the two layers and call it Layer 1, duplicate it twice (duplicated copies flipped vertically). I will also move them on Y axis until I see pattern I like.
Place one of the duplicates below and one above Layer 1, like a sandwich ;)

interweave_tutorial_015

Delete parts of the top layer again, to create interweaving effect.

interweave_tutorial_016

You can repeat these steps as many times as needed and produce really complex designs. I will stop here though… ;)

With the SpiroGraph plug-in, process is the same.
Run the plug-in with Reverse option selected. Stroke the paths on separate layers. Delete parts of the top layer.

interweave_tutorial_017interweave_tutorial_018interweave_tutorial_019

To add more complexity, merge the result, create another path, stroke it on a new layer, duplicate that layer, place one copy above and below the original.

interweave_tutorial_020interweave_tutorial_021interweave_tutorial_022

Delete parts of the top layer.

interweave_tutorial_023

Again you can go as complex as you want. Just keep track of all the layers and give them descriptive names. It can get messy!

You need a copy of a layer above and below each other layer you want it to interweave with. Then delete parts of those copies depending on “depth” you are in. Hope this makes sense.

Let me illustrate.

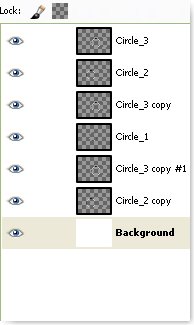

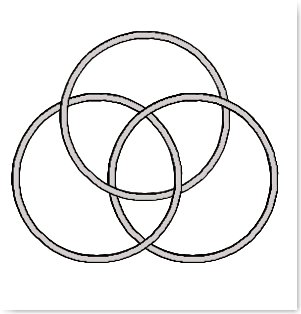

interweave_tutorial_024interweave_tutorial_025

Here are the XCF Files I used for this demo.

If you have any questions or feedback, I’d be glad to hear from you. Use the comments below.

Cheers!



/p
